SEGA Genesis: Mandelbrot

Scientific American cover (August 1985)

Polish-American mathematician Benoit Mandelbrot coined the term 'fractal' in his 1975 book 'Objets Fractals', describing geometric shapes with infinite details. Four years later, he would plot a specific fractal, now known as the 'Mandelbrot Set' on an IBM computer. This formula would fascinate mathematicians and programmers all over the world, and would end up on the cover of Scientific American in August 1985.

Hobby programmers would find that the Mandelbrot Set was relatively easy to plot, and the fractal would end up on the screen on many computers.

In this article, we will look at an implementation of the Mandelbrot set plot in MC68000 assembly code. This is an excellent example to use with one of the Raster Graphics implementations.

Mandelbrot Algorithm

Here is the Mandelbrot rendering algorithm from Wikipedia:

for each pixel (Px, Py) on the screen do
    x0 := scaled x coordinate of pixel (scaled to lie in the Mandelbrot X scale (-2.00, 0.47))
    y0 := scaled y coordinate of pixel (scaled to lie in the Mandelbrot Y scale (-1.12, 1.12))
    x := 0.0
    y := 0.0
    iteration := 0
    max_iteration := 1000
    while (x*x + y*y ≤ 2*2 AND iteration < max_iteration) do
        xtemp := x*x - y*y + x0
        y := 2*x*y + y0
        x := xtemp
        iteration := iteration + 1
    color := palette[iteration]
    plot(Px, Py, color)

It's as simple as it gets.

Now, planning the SEGA Genesis implementation, we have to deal with the fact that the MC68000 of the SEGA Genesis does have a floating point unit. The Mandelbrot rendering algorithm doesn't work with integers.

Fixed point numbers are an alternative to floating point numbers that work very well on the Genesis. They are less flexible than floating point numbers, but they perform very well on the MC68000 and are very easy to implement. For now, I will defer to the excellent introduction to fixed point numbers on plutiedev.com.

Fixed-point Mandelbrot in C++

C++ Implementation Output

Here is a C++ program that outputs the Mandelbrot set as an array of numbers. It is based on a fixed-point Mandelbrot algorithm by Bernhard Fischer:

#include <cstdio>
#include <cstdint>

typedef int16_t INT;
const int MAX_ITER = 15;

// Based on integer Mandelbrot by Bernhard Fischer
// https://www.cypherpunk.at/2015/10/calculating-fractals-with-integer-operations/
INT iterate(int real0, int imag0)
    const INT NORM_BITS = 6;
    const INT NORM_FACT = 1 << NORM_BITS;

    INT realq, imagq, real, imag;
    INT i;

    real = real0;
    imag = imag0;
    for (i = 0; i < MAX_ITER; i++)
        realq = (real * real) >> NORM_BITS;
        imagq = (imag * imag) >> NORM_BITS;

        if ((realq + imagq) > (4 * NORM_FACT))

        imag = ((real * imag) >> (NORM_BITS - 1)) + imag0;
        real = realq - imagq + real0;
    return i;

int main()
    const char aa[] = "0123456789ABCDEF";
    const INT WIDTH = 256;
    const INT HEIGHT = 200;
    char line[WIDTH+1];

    for (INT y = 0; y < HEIGHT; ++y)
        for (INT x = 0; x < WIDTH; ++x)
            INT mx = x-(WIDTH/2)-20;
            INT my = y-(HEIGHT/2);
            INT iteration_count = iterate(mx, my);
            line[x] = aa[iteration_count];
        line[WIDTH] = 0;

    int c = getchar();

The C++ implementation works with 10.6 bit fixed point numbers (10 bits integral part, 6 bit fractional part). The output is primitive, but the shape of the Mandelbrot set can be clearly noticed in the screenshot to the right.

This C++ implementation is suitable for conversion to MC68000 assembly code.

MC68000 Fixed Point Implementation

; Memory Map
MANDELBROT_ADDR   EQU $E0FF00 ; 12 B - 'iterate' stores current config here
iterations        EQU (MANDELBROT_ADDR+0)
norm_bits         EQU (MANDELBROT_ADDR+4)
norm_bits_minus_1 EQU (MANDELBROT_ADDR+8)
norm_fact         EQU (MANDELBROT_ADDR+12)
WIDTH             EQU 320
HEIGHT            EQU 224
MAX_ITER EQU 15 ; color values between 0 and 15

    lea $FF000000,sp

; Render Mandelbrot set to framebuffer address in a0
; a0: framebuffer ptr
; d0: offset x
; d1: offset y
; d2: zoom
; d3: screen y
; returns: updated a0
    movem.l d0-d7/a1-a6,-(sp) ; push all registers to stack

; for each pixel (d6, d7) = (Px, Py) on the screen do

    move.w  d0,d3
    move.w  d1,d4
    move.w  d2,d5

    move.w  #HEIGHT-1,d7 ; d7: y

    move.w  #WIDTH-1,d6 ; d6: x

    move.w  d7,d1       ; INT my = y-(HEIGHT/2);
    sub.w   #HEIGHT/2,d1
    move.w  d6,d0       ; INT mx = x-(WIDTH/2);
    sub.w   #WIDTH/2,d0

    add.w   d3,d0       ; real
    add.w   d4,d1       ; imag
    move.w  d5,d2       ; zoom
    jsr     iterate     ; d0 = iteration count

    ; render d0 to screen here

    dbra    d6,next_2pixels

    dbra    d7,next_row

    movem.l (sp)+,d0-d7/a1-a6 ; push all registers to stack

; d0: real0
; d1: imag0
; d2: zoom
; d0: return color (0-15)
    movem.l d1-d7,-(sp)   ; push all registers to stack

    ; set up RAM state
    move.w  d2,(norm_bits)           ; NORM_BITS

    sub.w   #1,d2
    move.w  d2,(norm_bits_minus_1)   ; NORM_BITS-1
    move.w  #8,d3                    ; 4 * (1<<NORM_BITS)
    asl.w   d2,d3
    move.w  d3,(norm_fact)

                        ; d0: real0
                        ; d1: imag0
    clr.l   d2          ; d2: realq
    clr.l   d3          ; d3: imagq
    clr.l   d4          ; d4: real
                        ; d5: imag

                        ; d6,d7: temp

    move.w  d0,d4       ; real = real0
    move.w  d1,d5       ; imag = imag0

    move.l  #MAX_ITER-1,d7    ; MAX_ITER
    move.l  d7,(iterations)

    move.w  d4,d2       ; realq = (real * real) >> NORM_BITS
    muls.w  d4,d2
    move.w  (norm_bits),d6
    asr.l   d6,d2

    move.w  d5,d3       ; imagq = (imag * imag) >> NORM_BITS
    muls.w  d5,d3
    move.w  (norm_bits),d6
    asr.l   d6,d3

    move.w  d2,d6       ; if ((realq + imagq) > 4 * NORM_FACT)
    add.w   d3,d6       ;   break;
    cmp.w   (norm_fact),d6
    bgt     done

    muls.w  d4,d5       ; imag = ((real * imag) >> (NORM_BITS - 1)) + imag0;
    move.w  (norm_bits_minus_1),d6
    asr.l   d6,d5
    add.w   d1,d5
    move.w  d2,d4       ; real = realq - imagq + real0;
    sub.w   d3,d4
    add.w   d0,d4

    move.l  (iterations),d7
    dbra    d7,.next


    move.l  (iterations),d7
    and.w   #$1F,d7
    move.w  d7,d0

    movem.l (sp)+,d1-d7 ; push all registers to stack

You can then call the mandelbrot subroutine like this:

    move.w  #-70,d0    ; x
    move.w  #0,d1      ; y
    move.w  #7,d2      ; zoom
    jsr  mandelbrot

Easy68K Test Implementation

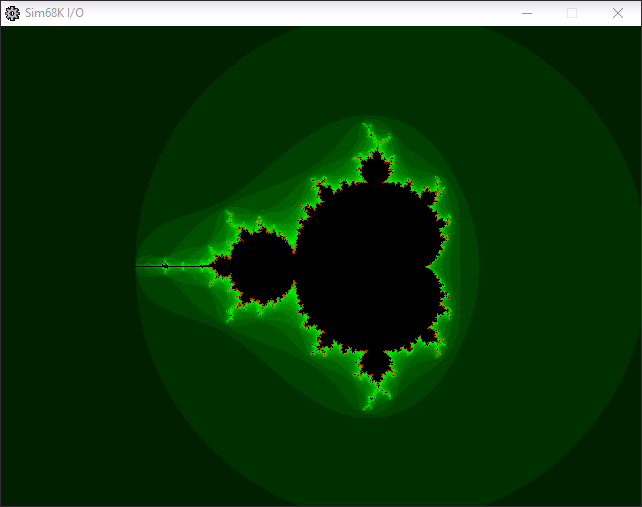

Mandelbrot test in Easy68K

Easy68K is a MC68000 emulator. It is not an emulation of the SEGA Genesis or any other platform, but it is useful for stepping through assembly code. It even has text and graphics output functionality, which can be used to test the Mandelbrot implementation without focusing on SEGA Genesis specifics.

In Easy68K, your code can use the instruction TRAP #15 to access pixels directly in a graphical window. The code is simple enough, if D6 and D7 contains the screen x and y-coordinates, and the iteration count is in D0, the following will put a yellow pixel on 10,10:

    move.l #$0000FFFF,d1 ; color $00BBGGRR
    move   #80,d0        ; set pen color D1
    TRAP   #15

    move.w #10,d1        ; x
    move.w #10,d2        ; y
    move   #82,d0        ; putpixel(D1,D2)
    TRAP   #15

The result can be seen in the screenshot

SEGA Genesis Implementation

Finished Mandelbrot ROM
(I seem to have flipped the X-axis)

The SEGA Genesis implementation serves as a demo for the linear bitmap framebuffer explained in the previous article. The returned iteration count is simply written to main RAM, and then copied to VRAM using copy_framebuf.
